CENTRAL OFFICE FANS

OUTSIDE PLANT FANS

KS23912L1A


TAG Universal DMS-100 3X9013 Fan Tray

Universal Mounting for
NT3X90AA, NT3X90AB,
NT3X90AC & NT3X90AF
cooling units

- No 24VAC Inverters
- No Sensor Paddles


*** NEW ***
TAG Universal DMS-100 Fan Tray

# TFT-3X9013T (.pdf)
TAG Universal DMS-100 3X9013 Fan Tray
Includes: (1) Brand New Fan Tray w/ Universal Mounting Holes, (5) TF-DMS03, DMS-100 48VDC Fans w/ TTL Tach & 3 Wire Plug, (1) Fan Control Board with Built in Sensors (no paddles needed), Wiring Labels, (1) Wiring Harness w/ Connector, NT3X90AA/AB & NT3X90AF Adapter Cables & Installation Guide


DMS TRAY INSTALLATION VIDEO (NT3X90AC)





DMS TRAY INSTALLATION VIDEO (NT3X90AF)





DMS TRAY CONVERSION INSTALLATION VIDEO (NT3X90AA/AB)




5ESS Pre-Charge Tool (.pdf)

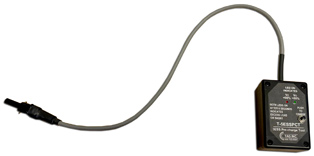

TAG's # T-5ESSPCT is used to pre-charge shelf power capacitors of a 5ESS switch. This allows a new fuse to be installed without seeing full in-rush surge current. The indicator light goes out when it is safe to install the fuse.



5ESS PRE-CHARGE TOOL VIDEO






Provides Early Warning by Detecting Defective or Reduced Battery Capacity at Critical Sites

INSTALLATION VIDEO:


TAG Battery Monitoring System


BATSTAT Brochure (.pdf)

  • Ideal for hard to access sites (Airports, Military Base)

  • Saves expense of testing batteries that are still good

  • "Protect your battery warranty" - Measures battery float voltage, current, resistance, and monitors battery temperature

  • Economical smart power plant upgrade


USB-C to DB9 Pin (male), (3')

# 400721USBC (.pdf)
USB-C to DB9 Pin (male), (3')


Nokia / Alcatel 7360 RT DSLAM Streaker Kit

# 7360KIT-02 (.pdf)
Nokia / Alcatel 7360 RT DSLAM Streaker Kit

includes:
(1) CT-7360, Streaker Unit
(1) 400190AY, Breakout Cable
(1) 400409X, Grounding Cord
(1) P-2000, Test Probe
(1) 3009415-502, Manual
(1) 600209N - Carrying Case


Adtran TA5000 8 Port LPU8 Streaker Card

"LPU8"


# ST-T5K-LPU8 (.pdf)
Adtran TA5000 8 Port LPU8 Streaker Card

w/ 16 LED's

# KIT-T5K-LPU8 (.pdf)
Adtran TA5000 LPU8 Streaker Kit

*TA5000 is a registered trademark of Adtran.




- Longer Test Unit for
Extended Label Visibility


Extended 239 SHDSL Wiring Access Board (.pdf)

# EXT-E239L
Extended 239 SHDSL Wiring Access Board
w/ Bantam Jacks

# KIT-E239L
Extended 239 SHDSL Wiring Access Board Kit
Kit includes: (1) EXT-E239L, (1) 400210A3BK, (1) 400210A3RD & (1) 600209



D4 Channel Break-Out Plugs

D4 Channel Break-Out Plugs (.pdf)

PN # 400480TPR
D4 Channel (R/A) Break-Out Plug w/ Test Points

PN # 400480TPS
D4 Channel (Straight) Break-Out Plug w/ Test Points




# T-DMSTBT (.pdf)
DMS-10/100 Pre-Charge Tool
(replacement for NTA0600512)

TAG's # T-DMSTBT is used to pre-charge shelf power capacitors on a DMS-10/100 switch. This allows a new fuse to be installed without seeing full in-rush surge current. The indicator light goes out when it is safe to install the fuse.



Need a CMC 5151 Channel Chek Unit (Yellow Box)?

TAG D4 Channel Check Unit


TAG has a Replacement Model for this previously discontinued part ...


# T-D4CC
TAG D4 Channel Check Unit

Instructional datasheet (.pdf)



TAG CAN REPLACE DEFECTIVE SIEMENS CABLES
(SCSI HARD DRIVE, etc...)

Please Call: 856-753-8585 or email: custsvcs@tagcords.com for more Information.


Battery Replacement for T-Berd

# BR-209OSP
Battery Replacement for T-Berd*

► TAG's # BR-209OSP is a replacement battery for T-Berd* 209 OSP Test Sets.
12V DC / 2.8 AH
Drop-in Replacement for T-Berd* 209 OSP
► 3yr Warranty
T-Berd 107A Batteries are also available (# BR-107A)

* T-Berd is a registered Trademark of JDSU.


T-Berd 209 OSP T1 Repeater


# KIT-209OSP (.pdf)
T-Berd* 209 OSP Auto Test T1 Repeater Test Kit


► TAG's PN # EXT-209OSP is a replacement "smart" repeater adapter for the TTC 41754. The EXT-209OSP is used with the T-Berd* 209 OSP Test Set.

* T-Berd is a registered Trademark of JDSU.




Calix E7-2

Calix E7-2 Streaker Card



# ST-CALIX-E7-2
Calix E7-2 Streaker Card, 48 Port (w/ 96 LED's)


The ST-CALIX-E7-2 provides a quick method to "streak", verify wiring via LED's, from the backplane of the Calix E7-2 to the Frame. At the Frame simply ground the corresponding pins and the ST-CALIX-E7-2 will light the LED associated with that connection.

E7-2-KIT-01
Calix E7-2 Streaker Kit
includes: (1) ST-CALIX-E7-2, (1) 400409, (1) P-2000 & (1) 600209XL



RHTAS Contact 32 Alarm Frame Block

# RH-AFB32
RHTAS Contact 32 Alarm Frame Block




Adtran TA1500 Quad LIU Streaker Card


# ST-TA1500QLIU
Adtran Total Access 1500 Quad LIU Streaker Card (w/ LED's)


The ST-TA1500QLIU Streaker Card provides a quick method to "streak", verify wiring via LED's, from the backplane of the Adtran Total Access 1500 to the DSX-1. At the DSX-1 simply ground the corresponding pins and the Streaker Card will light the LED associated with that connection.

*
Total Access 1500 is a registered trademark of Adtran



LIU Drop & Insert Unit / Test Cord

PN # 400396DI
LIU Drop & Insert Unit / Test Cord


TAG's multi-function LIU unit combines four (4) test cord functions in one unit. The 400396DI eliminates the need for multiple cords in various lengths and also provides versatile Drop & Insert capabilities. Drop & Insert functions can be performed at one LIU jackfield.


# KIT-D4 (.pdf file)
LIU Test Kit

# KIT-SLC (.pdf file)
SLC Test Kit


ML2300 / ML230 Streaker Card


Actelis Networks ML2300 / ML230 Streaker Card
(# ST-ML2300/ML230)
w/ 128 LED's


The ST-ML2300/ML230 provides a quick method to "streak or verify" wiring via LED's, from the backplane of the Actelis Networks ML2300 / ML230 to the Frame. At the Frame simply ground the corresponding pins and the ST-ML2300/ML230 will light the LED associated with that connection.

*ML2300 and ML230 are registered trademarks of Actelis Networks


SLC96 ACU Loopback Pin Plug Kit

SLC96 ACU Loopback
Pin Plug Kit (QTY of 10)

# PPK-10 (.pdf)

The PN # PPK-10 Kit includes (10) pin plugs that are used to loopback SLC96 ACU channel banks to isolate faults.


Adtran T5K DS3 Test Board


Adtran TA5000 DS3 Test Board (# TB-T5K-DS3) (.pdf)
w/ 440A Jacks


The TB-T5K-DS3 provides metallic access to the eight (8) DS3 circuits via 440A jacks from the Adtran TA5000 DS3 card slots to the DSX-3/4. The TB-T5K-DS3 is ideal for test acceptance procedures and pretesting before turn-up dates. With test equipment, a technician can quickly identify opens, shorts, crosses, and transmit & receive DS3 signals between the Adtran TA5000 and DSX-3.
*TA5000 is a registered trademark of Adtran.



SSU 2000 Streaker Card


Symmetricom SSU 2000 Streaker Card (# ST-SSU2000) (.pdf)
w/ LED's

The ST-SSU2000 provides a quick method to "streak", verify wiring via LED's, from the backplane of the Symmetricom SSU 2000 to the DSX-1. At the DSX-1 simply ground the corresponding pins and the ST-SSU2000 will light the LED associated with that connection.

*SSU 2000 is a registered trademark of Symmetricom, Inc.



Adtran TA5000 DS1 Streaker Card

Adtran TA5000 DS1 Streaker Card (# ST-T5K-DS1)
w/ 128 LED's

The ST-T5K-DS1 provides a quick method to "streak", verify wiring via LED's, from the backplane of the Adtran TA5000 to the DSX-1. At the DSX-1 simply ground the corresponding pins and the ST-T5K-DS1 will light the LED associated with that connection. (Can be used for both 32 port DS1 & 32 port DS1 Voice Gateway.)

*TA5000 is a registered trademark of Adtran.


Remote Network Cable Tester

Remote Network Cable Tester w/ Tone Generator (# CAT-107G)

Cable Test Features:
    Displays:  ► Short
                     ► Reversed
                     ► Miswired
                     ► Split Pairs

Additional Features:
►  Specially designed Remote Unit  that enables one person to test installed cables.

Tone Generator* Features:
► Verification of Shield Integrity
► Puts Tracer Tone on Cable
* Tone Generator function requires customer supplied Cable Tracing Probe


TAG Fiber Streakers

TAG Fiber Streakers (.pdf)
includes carrying case & batteries

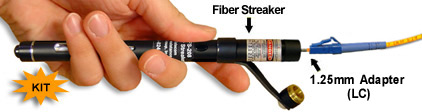

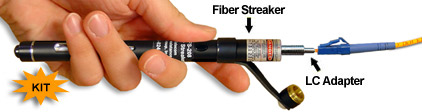

► Available with 2.5mm (TFS-208) & 1.25mm (TFS-210) receptacles for singlemode and multimode fibers
► The TFS-208 accepts any connector with a 2.5mm ferrule including SC, ST & FC connectors
► The TFS-210 accepts any connector with a 1.25mm ferrule including LC connectors
► Continuous and pulsed operation modes ► High visibility up to 3 km ► 650 nm laser output

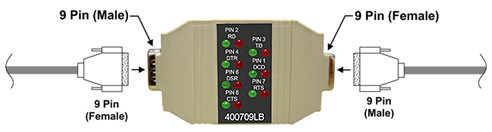

DB9 Mini Tracer

DB9 Mini Tracer
# 400709LB

DB25 Mini Tracer
     is also Available

TAG's DB9 Mini Tracer (PN # 400709LB) is used to test RS-232 circuits. (Negative voltage LED = RED, Positive voltage LED = GREEN)


D4 Monitor Cord

D4 Monitor Cord
(# 400480MHS) (.pdf)

471A Plug to D4 Monitor Plug, (5')

TAG's D4 Monitor Cord (PN# 400480MHS) is used to access dial tone from FXS and FXO cards. The D4 Monitor Cord directional switch enables dial tone to be pulled from the far end when plugged into the FXS card or near end (SMAS/Frame) when plugged into the FXO card.



SS7 Audit Kit



SS7 Audit Kit (# SS7-KIT)

► Dummy Plugs (310, Bantam, 800 DSX & 453A) to prevent accidental insertion / disruption of circuits.
Protective Caps to identify special circuits at the MDF.
► Assorted Labels & Tags.
► Includes Carrying Case.




FEI US5G Dual Streaker Card


FEI US5G Dual Streaker Card (# ST-US5G)
w/ 160 LED's


The ST-US5G Dual Streaker Card provides a quick method to "streak", verify wiring via LED's, thru the FEI US5G backplane to their termination points. The ST-US5G also checks the backplane connections to the "Protect" slot.

*US5G is a registered trademark of Frequency Electronics, Inc.


Adtran TA5000 SHDSL Streaker Card


Adtran TA5000 SHDSL Streaker Card (# ST-T5K-SHDSL)
w/ 64 LED's


The ST-T5K-SHDSL provides a quick method to "streak", verify  wiring via LED's, from the backplane of the Adtran TA5000 to the Frame. At the Frame simply ground the corresponding pins and the ST-T5K-SHDSL will light the LED associated with that connection.
*TA5000 is a registered trademark of Adtran.


HDSL 2/4 Wire Voltage Monitor


HDSL 2/4 Wire Voltage Monitor (# H2VM) (.pdf)
Equipped w/ belt clip & Bantam to Long Alligator Clips


►The H2VM Voltage Monitor is used to verify power on HDSL 2 Wire and 4 Wire Circuits at the MDF and other Cross Connect points.

Kits are Available


Remote HDSL Test Access System (RHTAS)


 Remote HDSL Test Access System - RHTAS (.pdf)
   ►Remote access puts data in the "hands" of the best HDSL troubleshooters.
   ►Allows accurate dispatching on HDSL troubles.
   ►Eliminates having another person retrieve or collect data.
   ►Remotely monitor and collect margin and performance data for proactive maintenance.
   ►Able to interface existing remote test systems.
   ►
NEBS Approved


top of page


HDSL Doubler Test Card



HDSL Doubler Test Card (200/400 mechanics)-
(# TB-400HDD) (.pdf)

►Plugs into Remote HDSL Doubler Apparatus Cases 200/400 (...Crab Pot )




DB9M/RS232 to USB Adapter Cable



DB9M/RS232 to USB Adapter Cable (# 400721USB)

Need access to a Serial Port on your Laptop?

TAG's Adapter Cable will convert your Laptop's USB Port into a Serial Port!



Motorola AXS2200 DS1 Streaker Card


Motorola AXS2200 DS1 Voice Gateway Streaker Card
(# ST-AXS2200DS1)

The ST-AXS2200DS1 verifies wiring continuity of 56 DS1 circuits. The Streaker Card provides a quick method to - verify wiring via LED's ("streak") from the Motorola AXS2200 to the DSX.


►The ST-DSX2 is required to "streak" - illuminate LED's.



Calix C7 Streaker Card


Calix C7 Streaker Card (# ST-CALIX-C7)
The ST-CALIX-C7 provides a quick method to "streak", verify wiring via LED's, from the backplane of the Calix C7 to the Frame. At the Frame simply ground the corresponding pins and the ST-CALIX-C7 will light the LED associated with that connection.



Ciena CNX-5Plus Streaker Card


Ciena CNX-5Plus Streaker Card w/ LED's (# ST-CNX-5PLUS)

The ST-CNX-5PLUS provides a quick method to "streak"- verify wiring via LED's from the Ciena CNX-5Plus backplane to the frame. On powered shelves two (2) LED's, (BATTERY A & B) are provided to indicate the presence of battery voltage. The ST-CNX-5PLUS Streaker Card does not require a powered backplane to test POTS or DSL Wiring.

CNX-5Plus™ is a registered trademark of the Ciena Corporation. All rights reserved.



Tellabs Titan 5500NGX Test Board


Tellabs - Titan 5500NGX Test Board (# TB-5500NGXDS3)
The TB-5500NGXDS3 has 440A jack access allowing metallic wiring verification and DS3 signal acceptance testing to the DSX-3/4.

The 5500NGX is a registered trademark of Tellabs



Symmetricom - TimeHub 5500 Streaker Card (# ST-TH5500)
The TimeHub 5500 Clock Streaker Card (ST-TH5500) provides a quick method to "streak"- verify wiring via LED's thru the TimeHub 5500 backplane to their Termination Points. The Streaker Card is utilized by installers and audit (acceptance) personnel. The STS-4 sends test signals to the ST-TH5500.

 TimeHub™ 5500 is a registered trademark of Symmetricom, Inc.




BNC Center Pin Depth Gauge


BNC Center Pin Depth Gauge (# BNC-G102)
TAG's BNC-G102 verifies BNC plug center pin depth.
The BNC-G102 is ideal to check BNC cable terminations assembled in the field.



 top of page

"MLT" Load Test Units


"MLT" Load Test Units
   ►Tip to Ring Short
   ►Tip to Ring Load (10K)
   ►Ring to Ground (10K)
   ►Tip to Ground (10K)
   ►Ringer Test Load (>.75A)
   ►Thru to Hollow Posts and RJ11




High Voltage - MDF Safety Plugs


High Voltage - MDF Safety Plugs
AVOID ACCIDENTS!
High Voltage Protector plugs can be used on the Frame when performing breakdown tests on cable pairs.



Wire Reel Brake Replacement

Wire Reel Brake Replacement (# WR-102BRK)
PUT THE BRAKES ON!
Cable Reel Brake Assembly w/ Grommet & Brake

►Avoid cross connect wire spool tangles and wasting of wire.
►The WR-102BRK replaces broken and/or worn-out brakes.


CO Shelf - Heat Deflector


CO Shelf - Heat Deflector, (23") (# SHD-23)
The SHD-23 is installed between chassis in a 23" frame allowing cool  air to enter the bottom front of the chassis and heated air to exit the top rear. This prevents a lower chassis from heating the chassis above it
.
  ►Fills 1 1/2" to 2" space

  ►Adjustable deflection angle
  ►Mounts in 23" frame with 5/8 or 1/2" mounting
  ►Hardware supplied



Fujitsu Flashwave Streaker Cards & Test Boards

Fujitsu Flashwave 7500 BITS


Fujitsu Flashwave 7500 BITS Streaker / Test Board
(# STB-FUJ7500BITS)

The STB-FUJ7500BITS provides a quick method to verify continuity as well as, transmit a test signal from the FLASHWAVE* 7500 BITS card slots to the DSX-1. The STB-FUJ7500BITS is used on non-powered systems.

FLASHWAVE® is a registered trademark of Fujitsu Network Communications Inc. (USA).



Fujitsu Flashwave 4100ES
Flashwave 4100ES  -  Streaker and Test Boards



Fujitsu Flashwave 4500
Flashwave 4500  -  Streaker and Test Boards



Fujitsu Flashwave 4300
Flashwave 4300  -  Streaker and Test Boards



Fujitsu Flashwave 4100
Flashwave 4100  -  Streaker and Test Boards



    return to top
