DMS Pictures / FAQ / Tips





Helpful RTIF Commands:


\help

\selftest

(These commands acknowledge that the TAG RTIF terminal is communicating with the DMS)



Helpful MAP Commands:


Type Ctrl Break     Response from DMS = ?

? login    Response from DMS is username & password

(These commands acknowledge that the TAG MAP terminal is communicating with the DMS)



Additional RTIF Commands:

If RTIF \selftest results are received as below:

  • ROM OK

  • RAM OK

  • 9X26 Fault = Defective Communication Card in Switch

- The Fault is in the DMS switch, not the Terminal.






DMS 10 Terminal Tips:



NO CURRENT LOOP

NO NULL ADAPTER



BAUD RATE: 1200 (MOST) OR 4800

DATA FORMAT: 7/1/E



To wake up the terminal = press shift + 8 (4) times: (Will give you 4 asterisks) ****



Exclamation point (!) = Not Logged in

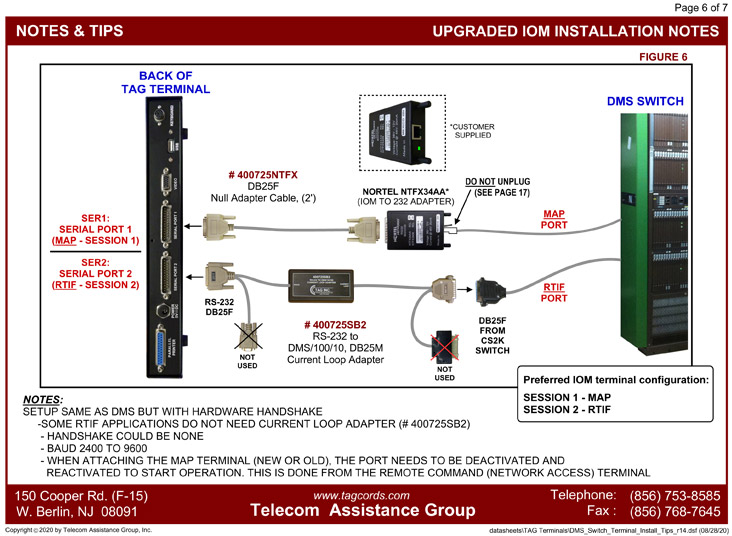

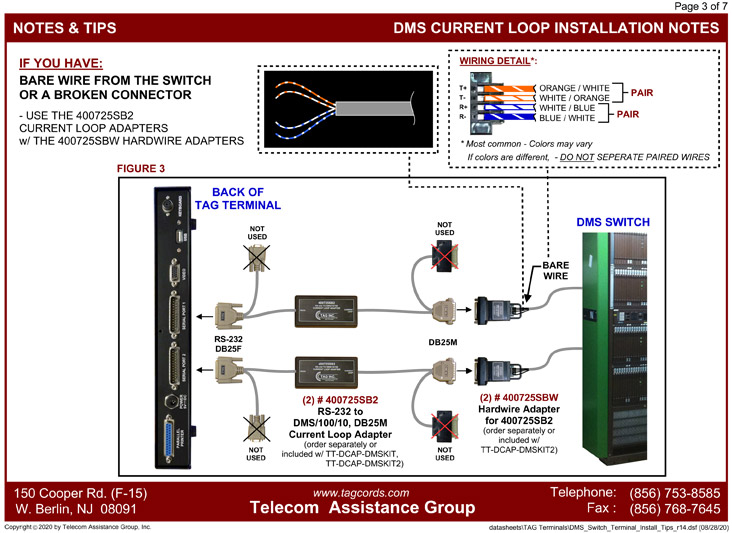

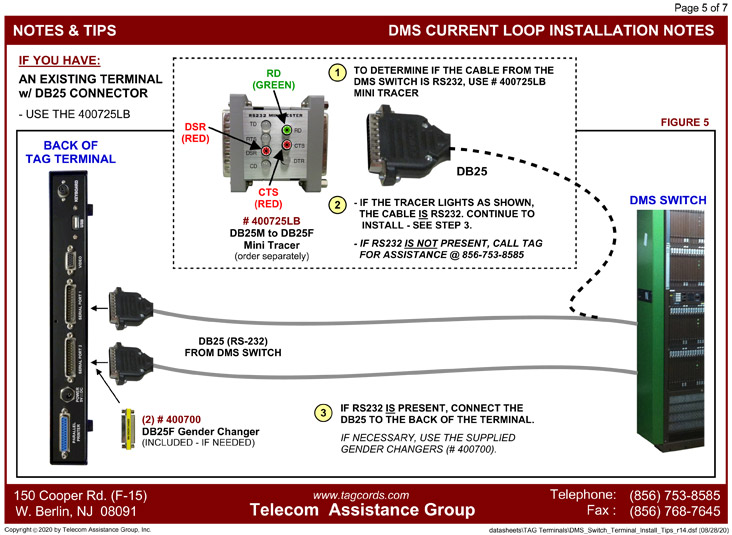

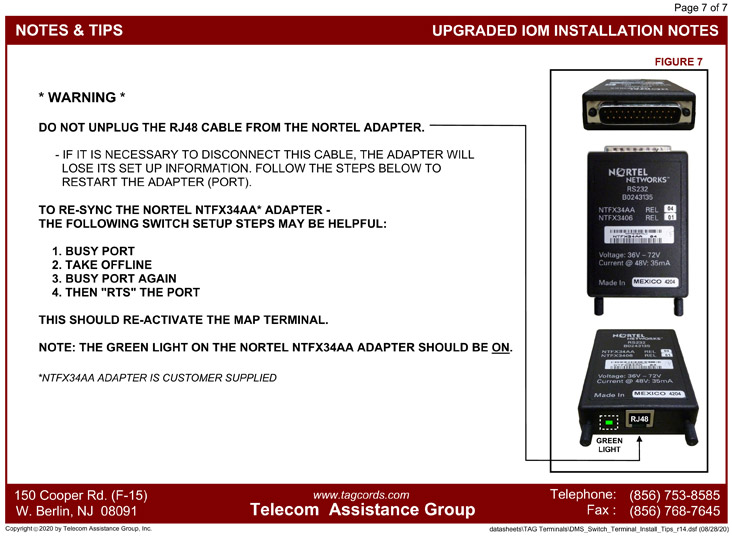

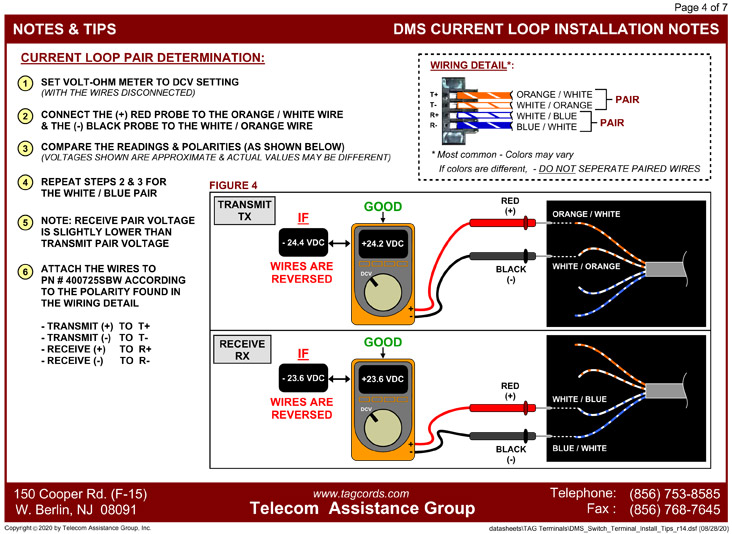

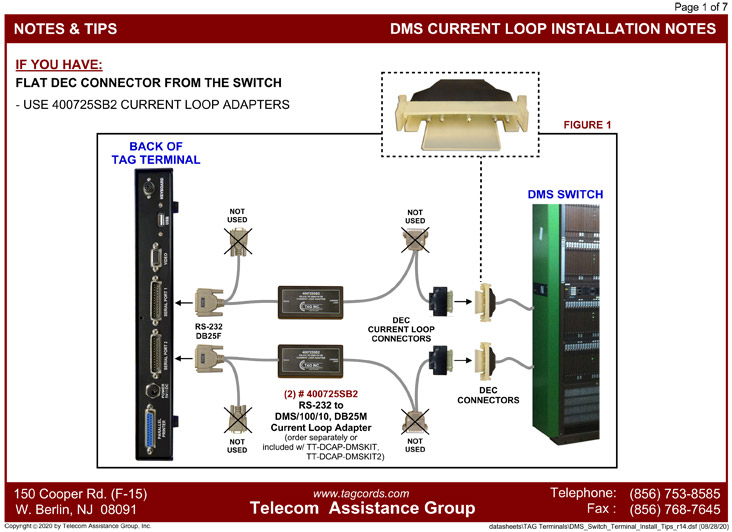

DMS Current Loop Installation Notes & Tips (pdf)

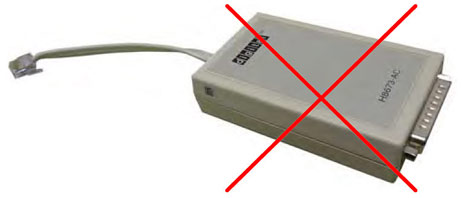

Current Loop to MMJ Adapter

(Remove these & use TAG current loop adapters - see diagram on page 2 of notes & tips)
DMS Current Loop Installation Notes & Tips (pdf)
