Welcome ! Thank you for visiting to our website.
Telecom Assistance Group (TAG) provides AC/DC
voltage Replacement Heat Exchanger and Enclosure Fans, Impeller
Fans, Fan Controllers, Power Cables, Fiber Optic Cables,
Environmental Control Units, Sierra Gas Monitor Refurbishment, and
early warning monitor devices for battery strings and rectifiers. |
Rob Schramm
Regional Sales Manager
rob@tagcords.com
Phone: 856-753-8585
Cell: 856-701-6727 |
|
|
|
|
|
|
 |
TAG PART #
TF-VZW225NC-01
(.pdf)
DESCRIPTION:
(225mm) 48VDC Backward Centrifugal Fan
w/ 4 Wires for Cell Site Heat Exchangers
-
Airsys
Evaporator Fan Motor
-
Common
Replacement for:
EBM R1G225-AC73-XX (where
XX=36,38,39,52)
EBM R1G225-AF11-XX (where XX=13,14)
EBM R1G225-AE07-11 EBM
R1G225-AG39-10
EBM R1F250-AQ00-XK EBM
R1G225-AG15-AA
9W2TS48P0S006
|
|
|
|
|
|
TAG PART #
TF-VZW355-01
(.pdf)
DESCRIPTION: (355mm) 48VDC Backward Centrifugal Fan
w/ 4
Wires & Connector for Cell Site
A/C Units & Heat Exchangers
|
|
|
|
|
 |
TAG PART #
TF-PSAR-3559
(.pdf)
DESCRIPTION:
(355mm) 200-277VAC Evaporator Fan Motor
w/ 8 Wires used in AirSys UniCool A/C Units
(Approx.
Height: 9 inches, Diameter: 14 inches)
-
Works with:
Model #
15V1T4MR410AAC - (Dual Evaporator Fan Unit)
Model #
18E1C4DR41 - (Single Evaporator Fan
Unit)
-
Common Replacement for:
R3G355-ANO4-71
-
“TAKE MEASUREMENT OF HEIGHT (From bottom
of motor)
& DIAMETER BEFORE ORDERING”
|
|
|
|

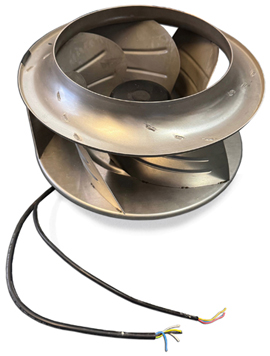

TAG PART #
TF-PSAR-3558
(.pdf)
DESCRIPTION:
(355mm) 200-277VAC Evaporator Fan Motor
w/ 8 Wires used in AirSys UniCool A/C Units
(Approx. Height: 8 inches, Diameter:
14 inches)
-
Works with:
Model #
15V1T4MR410AAC - (Dual Evaporator Fan Unit)
Model #
18E1C4DR41 - (Single Evaporator Fan
Unit)
-
Common Replacement for:
R3G355-ANO4-71
-
“TAKE MEASUREMENT OF HEIGHT (From bottom
of motor)
& DIAMETER BEFORE ORDERING”
|
|
|
|
 |

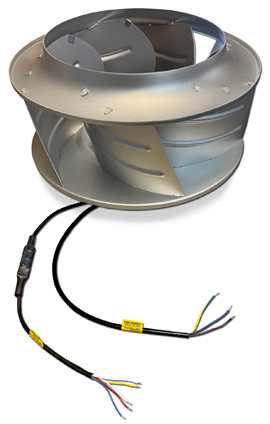

TAG PART #
TF-PSAR-3109
DESCRIPTION:
(310mm) 200-277VAC Evaporator Fan Motor
w/ 8 Wires used in AirSys UniCool A/C Units
(Approx. Height: 9 inches, Diameter:
12 inches)
-
Works with:
Model #
15V1T4MR410AAC - (Dual Evaporator Fan Unit)
Model #
18E1C4DR41 - (Single Evaporator Fan
Unit)
-
Common Replacement for:
R3G310-AN43-71
-
“TAKE MEASUREMENT OF HEIGHT (From bottom
of motor)
& DIAMETER BEFORE ORDERING”
|
|
|
|
|
|
TAG PART #
TF-PSAR-3106
DESCRIPTION:
(310mm) 200-277VAC Evaporator Fan Motor
w/ 8 Wires used in AirSys UniCool A/C Units
(Approx. Height: 6.6 inches, Diameter:
12.25 inches)
-
Works with:
Model # 15V1T4MR410AAC,
11V1B3MR410AAC
- (Dual Evaporator Fan Unit)
Model #
18E1C4DR41 - (Single Evaporator Fan
Unit)
-
Common Replacement for:
R3G310-AN43-71
-
“TAKE MEASUREMENT OF HEIGHT (From bottom
of motor)
& DIAMETER BEFORE ORDERING”
|
|
|
|
|
return to top |
|
|
|
 |
TAG PART #
TF-ALPHAW-01
(.pdf)
DESCRIPTION:
(120mm) 48VDC Fan for ALPHA Cabinet
w/ 2 Wire Open End
|
|
|
|
return to top |
|
|
|
 |
TAG PART #
TF-ARGHX-01AC
DESCRIPTION:
115VAC Heat Exchanger for Argus Cabinet
w/ Power Prongs & Open End Cable
|
|
|
|
|
 |
TAG PART #
TF-ARGCAB-01
DESCRIPTION:
12VDC Fan for Argus Rectifier Cabinet
w/ 3 Wire Connector
|
|
|
|
return to top |
|
|
|
|
|
 |
TAG PART #
TF-BLKSHLD-01
(.pdf)
DESCRIPTION:
(355mm) 48VDC Impeller Fan
w/ 4 Wires &
Connector
|
|
|
 |
TAG PART #
TF-BLKSHLD-02
(.pdf)
DESCRIPTION:
(225mm)
48VDC
Evaporator Impeller Fan
w/
4 Wires & Connector
|
|
|
|
return to top |
|
|
|
 |
TAG PART #
TF-CLX133-01
(.pdf)
DESCRIPTION:
(133mm)
HX Impeller Fan w/ 4 Wire Open End
(includes (4) butt splices & (1) 4 pin
connector)
(fan only, mounting bracket is not included)
|
|
|
return to top |
|
|
|
|
|
|
|
|
|
 |
TAG PART #
TF-G150PAC-01
DESCRIPTION:
(220mm) 230VAC A/C Impeller Fan
w/ 4 Leads & Capacitor
-
Dantherm 10000z
Evaporator Fan Motor
-
Common
Replacement for:
R1G220-AB73-63
R2E220-AA40-23
R2E220-RA38-13
-
Dantherm 10000b
Evaporator Fan Motor
Condenser Fan Motor
-
Common
Replacement for:
R2E220-AA40-23
R2E220-RA38-13
|
|
|
|
TAG PART #
TF-VZW225NC-01
DESCRIPTION:
(225mm) 48VDC Backward Centrifugal Fan
w/ 4 Wires for Cell Site Heat Exchangers
-
Dantherm 10000z 2024 model flat front
panel
Evaporator Fan Motor
Condenser Fan Motor
-
Dantherm 12000z
Evaporator Fan Motor
Condenser Fan Motor
-
Common
Replacement for:
EBM R1G225-AC73-XX (where
XX=36,38,39,52)
EBM R1G225-AF11-XX (where XX=13,14)
EBM R1G225-AE07-11 EBM
R1G225-AG39-10
EBM R1F250-AQ00-XK EBM
R1G225-AG15-AA
|
|
|
return to top |
|
|
|
|
|
|
|
|
|
|
 |
TAG PART #
TF-DELTAHX-02
(.pdf)
DESCRIPTION: 48VDC Fan
for Delta HX (Inner)
w/ 4 Wires & 5 Pin Connector
|
|
|
 |
TAG PART #
TF-TA5KHX-02
(.pdf)
DESCRIPTION:
48VDC "Low Profile"
Delta Heat Exchanger
Fan
for TA5000 Cabinet Door w/ 4 Wire
Plug
(fan only, use with existing guard grill) |
|
|
|
return to top |
|
|
|
 |
TAG PART #
TF-HEATEX-01
(.pdf)
DESCRIPTION:
48VDC Inner Heat Exchanger Fan
w/ 3 Wire, 4 Pin Plug
|
|
|
return to top |
|
|
|
|
TAG PART #
TF-G150PAC-01
(.pdf)
DESCRIPTION:
(220mm) 230VAC A/C Impeller Fan
w/ 4 Leads & Capacitor
|
|
|
 |
TAG PART #
TF-HX220LP-01
(.pdf)
DESCRIPTION:
(220mm) 48VDC "Low Profile" Heat
Exchanger
w/ 4 Leads & Faston Connectors
|
|
|
|
|
 |
TAG PART #
TF-TX33HX-01
(.pdf)
DESCRIPTION:
(175mm) 48VDC Heat Exchanger Fan
w/ 4 Wire Weatherproof Connector
|
|
|
|
return to top |
|
|
|
 |
TAG PART #
TF-CQ250-01 (.pdf)
DESCRIPTION:
(250mm)
Heat Exchanger Fan for
Ice Qube Cabinet w/ 4 Wire Open End
|
|
|
|
|
return to top |
|
LTE Wireless (Panasonic
Thermosiphon LTE Fans) |
|
|
|
 |
TAG PART #
TF-VZWLTE-01
DESCRIPTION:
(225mm) 48VDC
Fan for LTE Cabinet
w/ 4 Wires & Connector
|
|
|
return to top |
|
|
|
|
 |

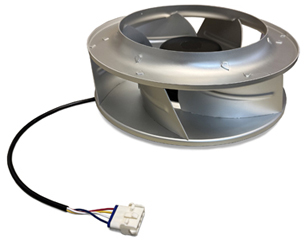

TAG PART #
TF-MARV310-01
DESCRIPTION: (310mm) 48VDC
Marvair SlimPac Condenser Impeller Fan
w/ 4 Wires & Connector
(Approx.
Height: 4.7 inches, Diameter:
12.25 inches)
|
|
|
return to top |
|
|
|
 |
TAG PART # TF-VZW225-01
DESCRIPTION: (225mm)
48VDC Backward Centrifugal Fan
for Heat Exchangers & Air Conditioning
Units
w/ 4 Wires & Connector
-
Commonly used in:
Purcell Flexair 3800
-
Common
Replacement for: KFB2354MU-00
|
|
|
return to top |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
TAG PART #
TF-VK225-01
(.pdf)
DESCRIPTION:
(225mm)
48VDC
Evaporator Impeller Fan for
Vikinor 3000 HX w/ 3 Wires & Connector
|
|
|
 |
TAG PART #
TF-VK310-01
(.pdf)
DESCRIPTION:
(310mm)
48VDC Condenser Fan for
Vikinor 3000 HX w/ 3 Wires & Connector
|
|
|
|
|
|
|
|
|
|
|
 |
TAG PART #
TF-CU175-01
DESCRIPTION:
(175mm) Blower Fan for
Siemens 914EX Metro w/ 4 Wire Open End
|
|
|
|
|
|
| |
|
