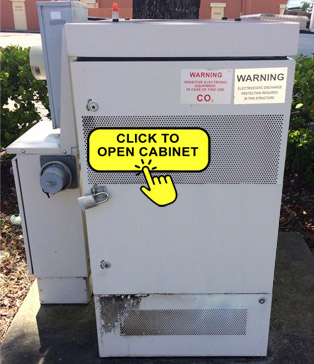

VRAD / Emerson ALP-148E Cabinet Solutions

# TF-ALC7330-4
Alcatel 7330 VRAD Fan Kit
w/ Quick Install Template Plate
(Internal Tray Fans) - 4 per tray

# TF-PURALP148-01
48V Heat Exchanger
for
ALP-148E (Emerson) Cabinet
w/ 4 Wire Male Plug
(Cabinet Door "Top") - 3 per cabinet



return to top






2


VRAD / Purcell ALP-248/448 Cabinet Solutions

# TF-ALC7330-4
Alcatel 7330 VRAD Fan Kit
w/ Quick Install Template Plate
(Internal Tray Fans) - 4 per tray

# TF-PURALP-01
48V Heat Exchanger Fan
for
ALP-248/448 (Purcell) Cabinet
w/ 4 Wire Plug (7' cable)
(Cabinet Door "Top") - 6 per cabinet
(Cabinet Door "Bottom") - 6 per cabinet
(Battery) - 1 per cabinet



return to top






3


VRAD / CommScope ALP-448U Cabinet Solutions

# TF-ALC7330-4
Alcatel 7330 VRAD Fan Kit
w/ Quick Install Template Plate
(2 Internal Tray Fans) - 4 per tray

# TF-COM6DF-01
48V Fan for
ALP-448U (CommScope) Cabinet
(Internal Tray Fans) - 3 per tray

# TF-COM6BC-01
48V Fan for
ALP-448U (CommScope) Cabinet Door
(Door of Cabinet) - 3 per cabinet



return to top






4

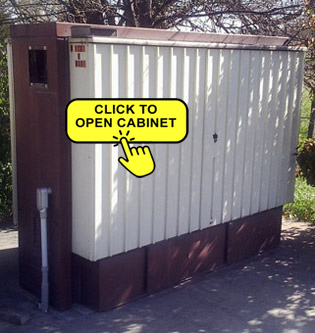

80 Type - SLC2000 Cabinet Solutions


# TF-SLC201-02
48V Heat Exchanger for 80 Type Cabinet
(Side of Cabinet) - 2 per cabinet


# TF-SLC201
48V Fan for
SLC 2000 4A / 4B Fan Trays

(Internal Tray Fans) - 2 per tray


# TFC-114A-01
114A Fan Control Unit for
80 Type Cabinet Heat Exchangers

(Heat Exchanger Controller) - 1 per cabinet

# TFC-LU4-01
Alarm Control Board for
Lucent 4A / 4B, 4G / SLC 2000 Fan Trays
& 114A Control Units

(Tray Controller Board) - 1 per tray/controller

# TF-SLCBC-01
48V Cooling Fan for 80 Type Cabinet Battery Compartment

- 1 per cabinet


# TFC-116A-01
Alarm Control Board for
Lucent 116A Battery Fan Unit

(Control Board)

- 1 per cabinet

return to top






5

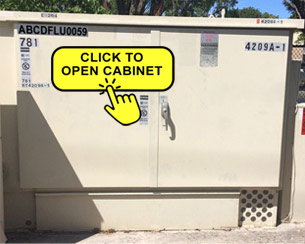

LS2000 (LSC-2020) Cabinet Solutions


# TF-LS2000-03
48V Heat Exchanger for
Litespan 2000 Cabinet Heat Stack

(Top & Bottom) - 2 per heat stack

# TF-LS2000-44
Litespan 2000 DFA Fan Kit
(Internal Tray Fans) 1 Kit (4 fans) per tray
(3 KITS = 12 FANS)


# TFC-DFA-01
Alarm Control Board for
Litespan 2000 DFA Fan Tray

(Fan Tray Alarm Board) - 1 per tray

return to top






6

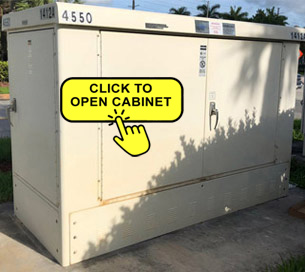

LS2000 (LSC-2030) Cabinet Solutions


# TF-ACABTZ-01
48V Heat Exchanger(Tarzan) for Litespan 2000
LSC-2030 Cabinet Heat Stack

(Top & Bottom) - 2 per heat stack

# TF-LS2000-44
Litespan 2000 DFA Fan Kit
(Internal Tray Fans) 1 Kit (4 fans) per tray
(2 KITS = 8 FANS)


# TFC-DFA-01
Alarm Control Board for
Litespan 2000 DFA Fan Tray

(Fan Tray Alarm Board) - 1 per tray

return to top







7

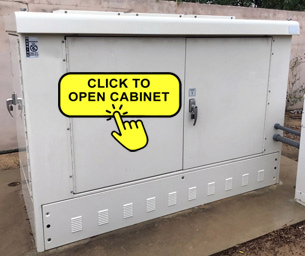

LS2016 Cabinet Solutions


# TF-LS2000-03
48V Heat Exchanger for
Litespan 2016 Cabinet Roof HX Assembly

(Roof HX) - 6 per cabinet

# TF-LS2000-44
Litespan 2016 Cabinet DFA Fan Kit
(Internal Tray Fans) - 1 Kit (4 fans) per tray
(4 KITS = 16 FANS)


# TFC-DFA-01
Alarm Control Board for
Litespan 2000 DFA Fan Tray

(Fan Tray Alarm Board) - 1 per tray

# TF-LS2000-02
48V Fan for
Litespan 2016 Cabinet
High Velocity PDFA Tray

(Internal Tray Fans) - 3 per tray

return to top






8

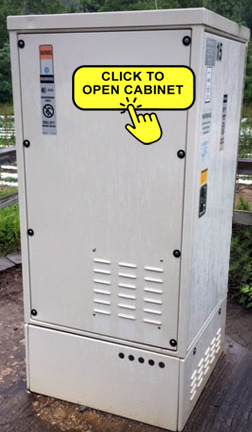

Mesa 768 Cabinet Solutions

# TF-MC133-02
(133mm) Heat Exchanger for Mesa 768 Cabinet

(Equiv. to Diplomat DC, P/N 031794,
Model # DDF48B6NDX)

 - 1 per cabinet


return to top






9

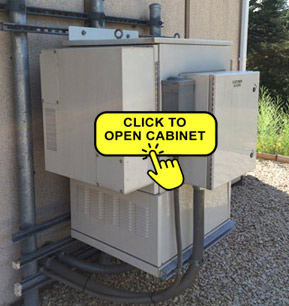

Mesa Cell Site Cabinet Solutions

# TF-MC225-01
(225mm) Heat Exchanger for
Cell Site Emerson Mesa XL Cabinet Door

(Top Left & Lower Right) - 2 per cabinet

# TFC-MESA-01
2 Port Mesa Cabinet Environmental Control Unit (ECU)
(Inside Door) - 1 per cabinet

return to top






10

Mesa ECU Cabinet Solutions

# TFC-MESA246-01
6 Fan Environmental Control Unit (ECU) for Remote Cabinet Sites


Includes: (2) Temperature Sensors

return to top






11

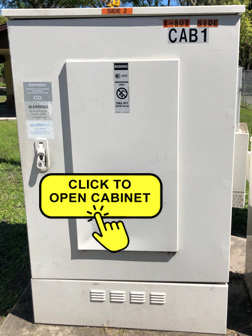

Mesa DSLAM 384 Cabinet Solutions

# TF-MESA384-01
48V Heat Exchanger for Mesa 384 Cabinet
(Top External) - 2 per cabinet
(Lower Internal) - 2 per cabinet

# TF-ALC7330-4

Alcatel 7330 VRAD Fan Kit
w/ Quick Install Template Plate
(2 Internal Tray Fans) - 4 per tray

# TFC-MESA-04
4 Port Environmental Control Unit (ECU)

for Mesa 2 Cabinet
- 1 per cabinet
used in the DSLAM 384 Type Cabinets

return to top






12

Mesa 2 Cabinet Solutions

# TF-MC225-01
(225mm) Heat Exchanger
(Top Solar Panel Fan) - 1 per cabinet

# TF-MC225-02-KIT
(225mm) Heat Exchanger KIT
(Bottom Internal Fan) - 1 per cabinet

# TFC-MESA-04
4 Port Environmental Control Unit (ECU)

for Mesa 2 Cabinet
- 1 per cabinet
used in the DSLAM 192 Type Cabinets

return to top






13

Mesa 4 Cabinet Solutions

# TF-MC225-01
(225mm) Heat Exchanger
(Top Solar Panel Fan) - 2 per cabinet

# TF-MC225-02-KIT
(225mm) Heat Exchanger KIT
(Bottom Internal Fan) - 2 per cabinet

return to top






14

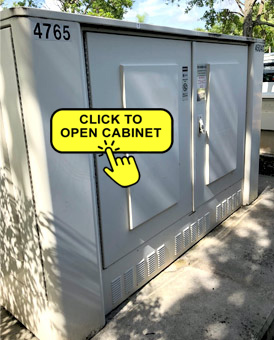

Mesa 6 (Marconi) Cabinet Solutions


# TF-MESA6-01
48V Heat Exchanger for

Marconi Mesa "Bottom" HX Cabinet
(Bottom Heat Stack Fan) - 4 per cabinet

# TF-MCABTZ-01
48V Heat Exchanger for

Marconi Mesa "Top" HX Cabinet (Tarzan)
(Top Heat Stack Fan) - 2 per cabinet


# TF-FA400-01
48V Fan
for Marconi Mesa Master Fan Tray
(Internal Tray Fans) - 4 per cabinet

# TF-FA400-02

48V Fan
for Marconi Mesa Slave Fan Tray
(Internal Tray Fans) - 12 per cabinet



return to top








15

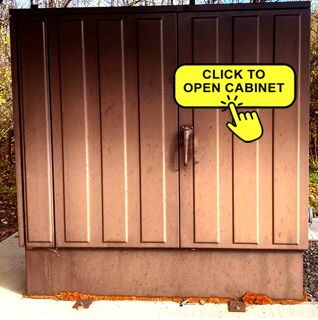

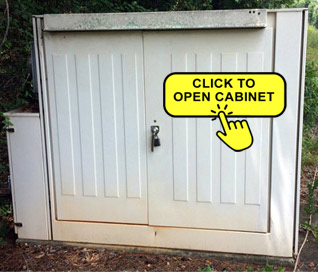

Nortel OPAC / OPM Cabinet Solutions


# TF-NTOPAC
48V Fan for Nortel OPAC / OPM Cabinet

# TF-NTOPAC-02
48V Fan for Nortel OPAC / OPM Cabinet

(Inner Roof of Cabinet) - 8 per cabinet
(Internal Tray Fans) - 2 per tray

return to top






16

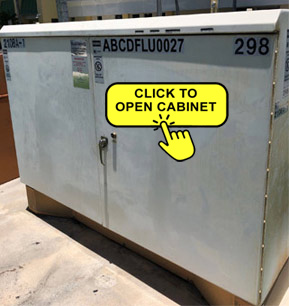

Fujitsu 6200 Cabinet Solutions

# TF-FUJ6200-01
48V Heat Exchanger for

Fujitsu 6200 Cabinet
(Left & Right side) - 2 per cabinet


# TF-914EXMET-01
48V Fan for Siemens 914EX Metro MXU Fan Tray

(Internal Tray Fans) - 2 per tray

return to top






17

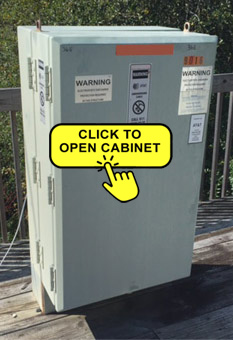

SLC96 (36 Type) Cabinet Solutions

# TFT-SLC96-AC01
110VAC Fan for
SLC96 (36 Type) Cabinets
w/ Bracket Assembly

# TF-SLC96-AC02
110VAC Fan for SLC96 (36 Type) Cabinets

(fan only)

(use in Fan Assembly KS22099L5 found in
36 Type Cabinets)

return to top







18

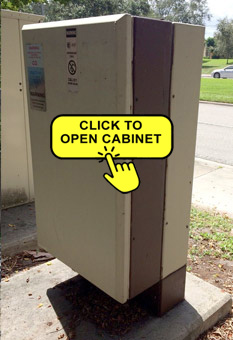

36B Cabinet Solutions

# TF-LU2C
48V Fan for Lucent 2C Fan Unit / Tray

(Internal Tray Fans) - 3 per tray

# TFC-LU2BC-01
Alarm Control Board for
Lucent 2B & 2C Fan Trays

(Fan Tray Alarm Board) - 1 per tray

#T-6W3F-05
Test Cord for 36B Cabinet,
Protector / 526A plug to
125 Station Protector (5')

- 1 per cabinet

return to top







19

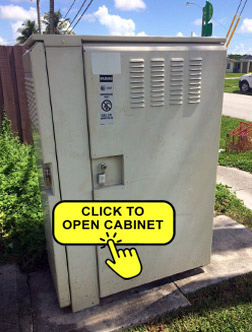

52B Cabinet Solutions

# TF-ALC-01
48V Fan for Alcatel 7300 Fan Tray

(Internal Tray Fans) - 4 per tray

# TF-COM6DF-01
48V Fan for
Fan Assembly in 52B Cabinet
(Internal Tray Fans) - 3 per tray

# TF-COM6BC-01
48V Fan for
52B Cabinet Door
(Door of Cabinet) - 2 per cabinet



 return to top






20

Noren Cooling Unit Heat Exchangers

# TF-NP0402-01
48V Heat Exchanger for

Noren Cooling Unit - Internal (6.71K),

(equiv. to "THE SMART FAN", MODEL # NP0402)

# TF-NP0414-02
48V Heat Exchanger for

Noren Cooling Unit - External (8.45K)

(equiv. to "THE SMART FAN", MODEL # NP0414)



return to top






21

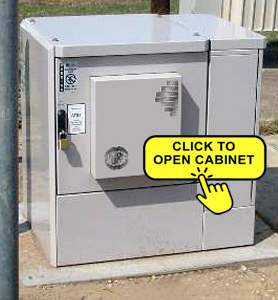

Purcell Cabinet Solutions

# TF-MC133-01
(133mm) Heat Exchanger for

Purcell FlexAir 741 Cabinet Door
(fan only - use with existing bracket)

- FlexAir 741 shown in picture to the left


# TF-MC175-04
(175mm) Heat Exchanger for

Purcell A009 Cabinet
(fan only - use with existing bracket)

(for Fan Kit with Bracket, order # TF-MC175-04-KIT )

return to top
